Arachnipod Advantage PLUS Multipod Edge Mgt System

Ferno Australia Arachnipod Advantage PLUS Edge Management System

Arachnipod Advantage PLUS Multipod Edge Management System from Ferno Australia is the world's most versatile modular total edge management system (TEMS) and was recently awarded an Australian International Design Mark at the 2008 Design Awards. The Arachnipod is based around the concept of an industrial tripod, however this product is much more than just a tripod. Components can be added or removed as required so that the Arachnipod complements existing structural or natural features. The unique design of the patent-pending modular head means the Arachnipod can be constructed into many different configurations including a ginpole/monopole, bipod, tripod, quadpod, bridge system and handrail recovery monopole. For heavy loads an infinite number of additional legs can be fitted to increase the safe working load (SWL). Its versatility makes it an ideal system for workers in industries such as rescue and emergency services, construction, military, utility services, mining, film and maintenance

How It Works

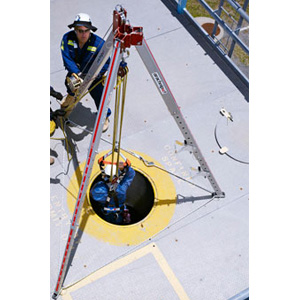

The Arachnipod, in its most basic form, is a simple tripod with the three legs independently pivoting from an anodized aluminium head. The modular head has a similar design to a door hinge. Inserting or removing a pin through the center of the head allows the quick and simple addition or removal of components to create a configuration to suit any edge management scenario. Each head section contains a shackle

The Arachnipod Advantage PLUS includes the basic Advantage Tripod system (Pulley Head and one swivelling rigging point) and adds a Gin Head, Rigging Plate, Quad Plate, and Reverse Head. A Quadpod system can be created by adding the appropriate Quadpod Add-On Kit to the base system. Weight: 60 lbs.

Advantage:

Available Option:

• 24481208: Pulley QuadPod Add On Set
• 24481206: Arachnipod Advantage PLUS Edge Management System
