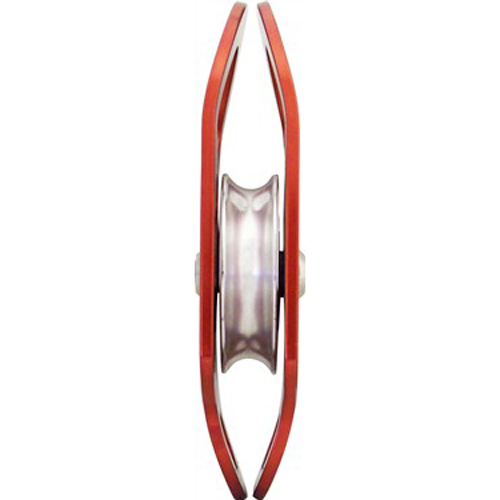

ISC 2.5" Single Pulley with Becket-Bush
The ISC 2.5" Single Pulley with Becket-Bush is a new high-strength, long wearing design made for ropes up to ˝ -inch (13mm) diameter. Designed to meet NFPA standards, this multi-function, lightweight pulley is fits almost all rescue and technical work needs. During high load situations, the sideplates bend to the 3 carabiner rigging point, thereby reducing flexing and stresses put on bends. The 3/16 sideplates are intended to protect the rope as it moves through the pulley. In fact, a 5/8 diameter rope is protected by the sideplates from edge abrasion. This compact, NFPA approved pulley features 2.5-inch diameter sheaves that aid in smooth running efficiency. The pulley is available in two styles – bushing and bearing, each in aluminium and stainless steel sheave type. ISC RP065
Configurations |
|
Dimensions |
5.25” x 3.5” (131.3 x 87.5mm) |
Pulley Tread Dia. |
2.1” (52.5 mm) |
Strength |
11,240 lbf (50 kN) |
WLL |
1124 lbs. (511 kg) |
Weight |
8 oz. (Aluminum) |
Available Models:
Model# |
Size |
Color |
61083504 |
Bushing |
Red |
61083514 |
Bearing |
Red |
