ISC Deadweight Portable Anchor

ISC Deadweight Portable Anchor

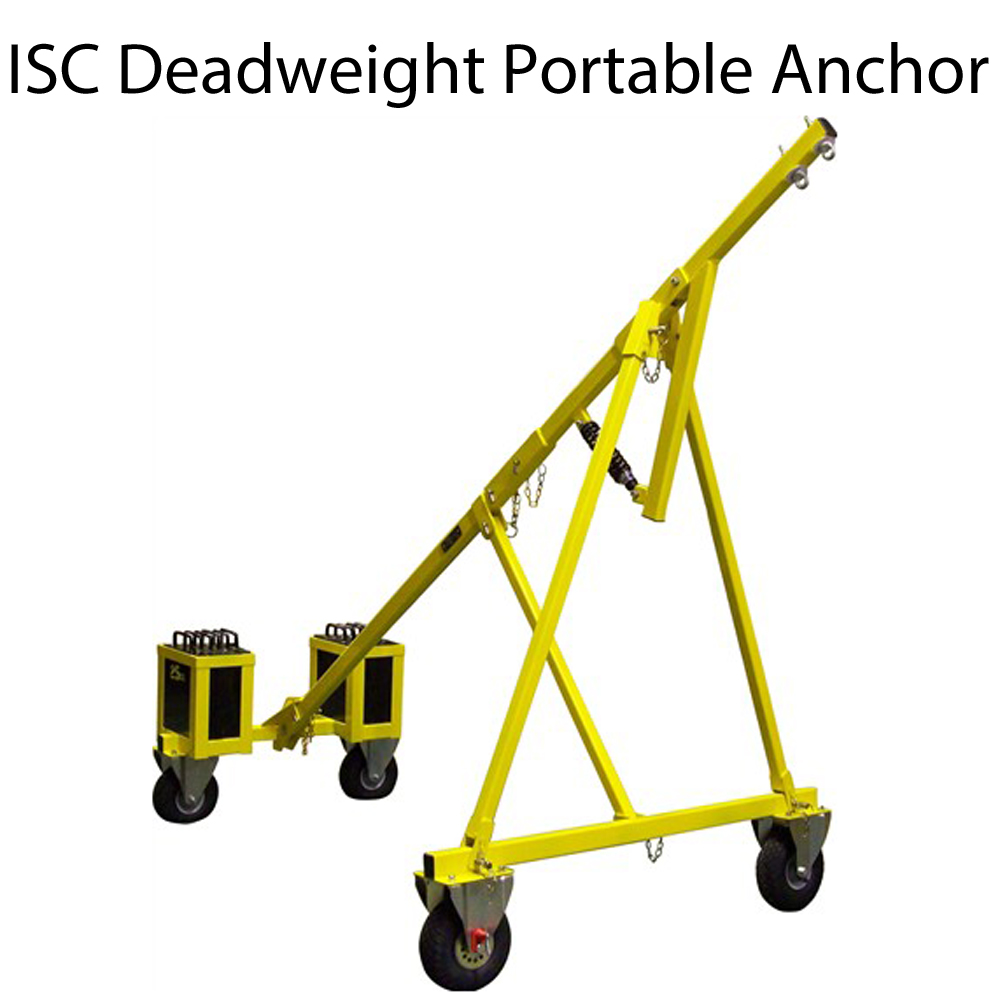

The ISC Deadweight Portable Anchor is perfect to use behind the Balustrades & Parapet walls and structural handrails. It has a sturdy construction ensuring safe uses during any rescue system. The unique design of the ISC Portable Anchor ensures no damage to the surfaces. It also won't require alteration of the building aesthetics or penetration of the roof membrane for set up.

It feature 2-3/4" sheave with bushing and an axle made of stainless steel. The anchor's body is constructed using mild steel with powder coating. Ropes of diameter up to 13mm can be used with it during any operation. This unit can be easily moved sideways and requires minimal assembly with low maintenance. It comes with built-in shock absorbers to reduce vibrations or jerks while working.

Features:

• Use behind Structural Handrails, Balustrades & Parapet walls
• Suitable for us on flat roof surface(Requires minimum 300mm upstand)
• 5' 9" (1.8m) high anchor points enables user to easily start their descents
• No Damage to Surfaces. Does not require penetration of roof membrane
• Built-in Shock Absorber
• No alteration to building aesthetics Does not require penetration of roof membrane
• Low maintenance
• Unit can easily be moved sideways. Reduces need for re-rigging
• Minimal assembly required.
• Includes Weights
• EN795:97 Type B

Configurations:

• EN795: 97 Type B
• Weight: 859 lbs (390 kg)
• Weight of individual weights: 55 lbs (25 kg)
• Weights Included: 12 (660 lbs / 300 kg)
• Rope diameter range: 13mm (max)
• Body material: Mild steel
• Finish: Powder coated
• Color: Yellow
• Safe Working Load(SWL): 550 lbs (250 kg)
