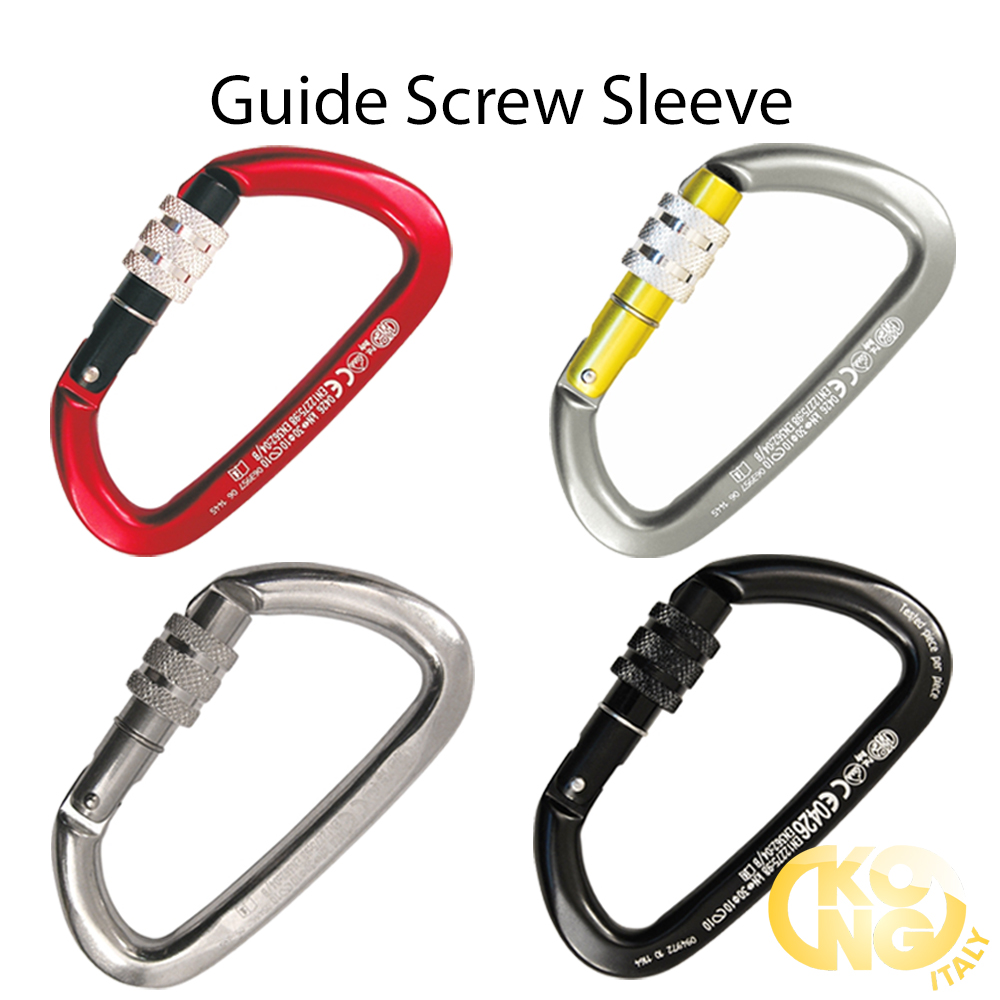

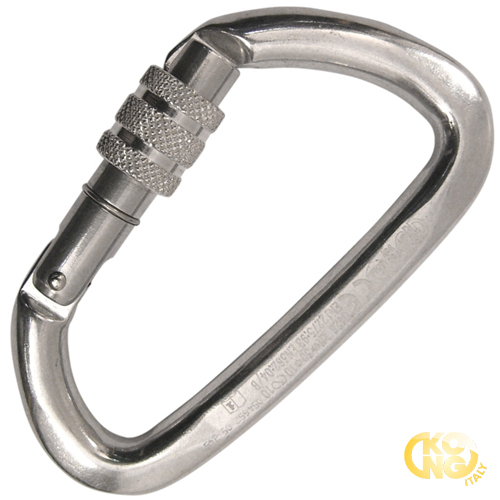

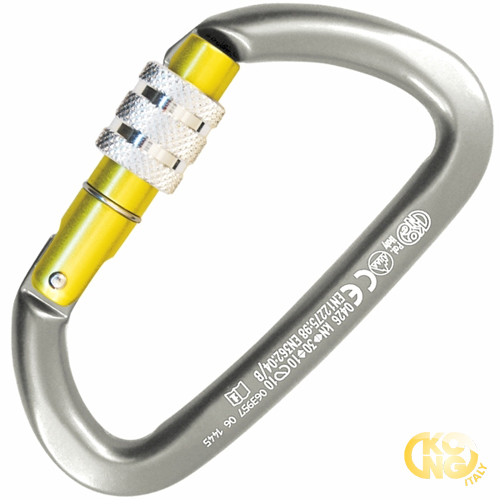

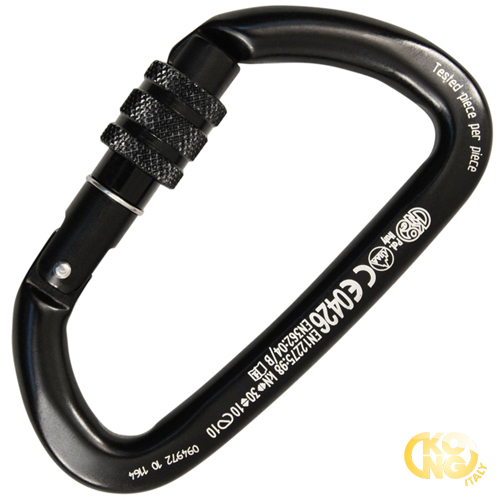

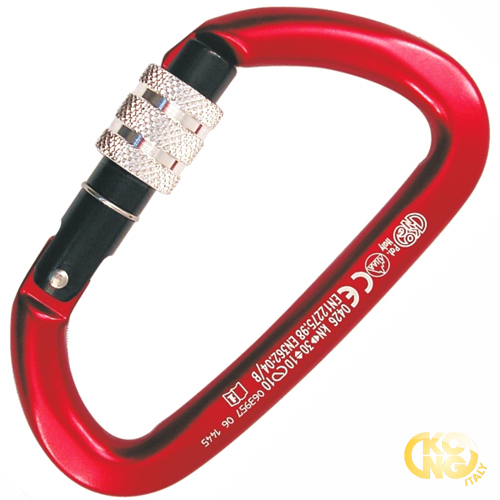

Kong Guide Screw Sleeve
The Kong Guide Screw Sleeve can easily bear heavy loads. Its aluminum alloy body has a D shape design which helps transfer majority of the weight on the main axis on the carabiner. Its asymmetrical shape makes it ideal to use on belay systems, specifically during bolt belay. The carabiner features a keylock system that ensure maximum security during tactical or other activities.
This Carabiner is a superior quality product that has been indigenously developed and manufactured in Italy. The design is best to use in work activities like scaffolding, trestles, on elevating platforms, in confined spaces, tree climbing, tactical and on fire-brigades.
Recommended for:
Work Activities: Scaffolding and Trestels, Confined Spaces, Portable Stairs and Elevating Platforms, Treeclimbing/Arboriculture, Roof and Inclined Planes
Rescue Activities: Firebrigades and Civil Protection, Tactical
Features:
- Heavy load
- Keylock system
Specifications:
Part No. | Weight | Length | Width | Body Diameter | Rope Diameter | Axis Load | Open Gate Load |
733LA0NNNK (733NNN6ANKK) | 70g (2.47oz.) | 110mm (4.33in) | 62.5mm (2.46in) | 11mm (0.43in) | 19mm (0.75in) | 10 to 30 kN | 10 kN |
733LA0PPPK (7330001A1KK) | 70g (2.47oz.) | 110mm (4.33in) | 62.5mm (2.46in) | 11mm (0.43in) | 19mm (0.75in) | 10 to 30 kN | 10 kN |
733LA0RNPK (733RNP4A1KK) | 70g (2.47oz.) | 110mm (4.33in) | 62.5mm (2.46in) | 11mm (0.43in) | 19mm (0.75in) | 10 to 30 kN | 10 kN |
733LA0DCPK (733FCP4A1KK) | 70 g (2.47oz.) | 110 mm (4.33in) | 62.5mm (2.46in) | 11mm (0.43in) | 19mm (0.75in) | 10 to 30 kN | 10 kN |
Certification Information:
- CE EN 362/B
- CE EN 12275/B
- UIAA
Click Here To Download: Instructions of Use
Click Here To Download: General Safety Informations
