Kong Triangle Quick Links Carabiner Pack of 5

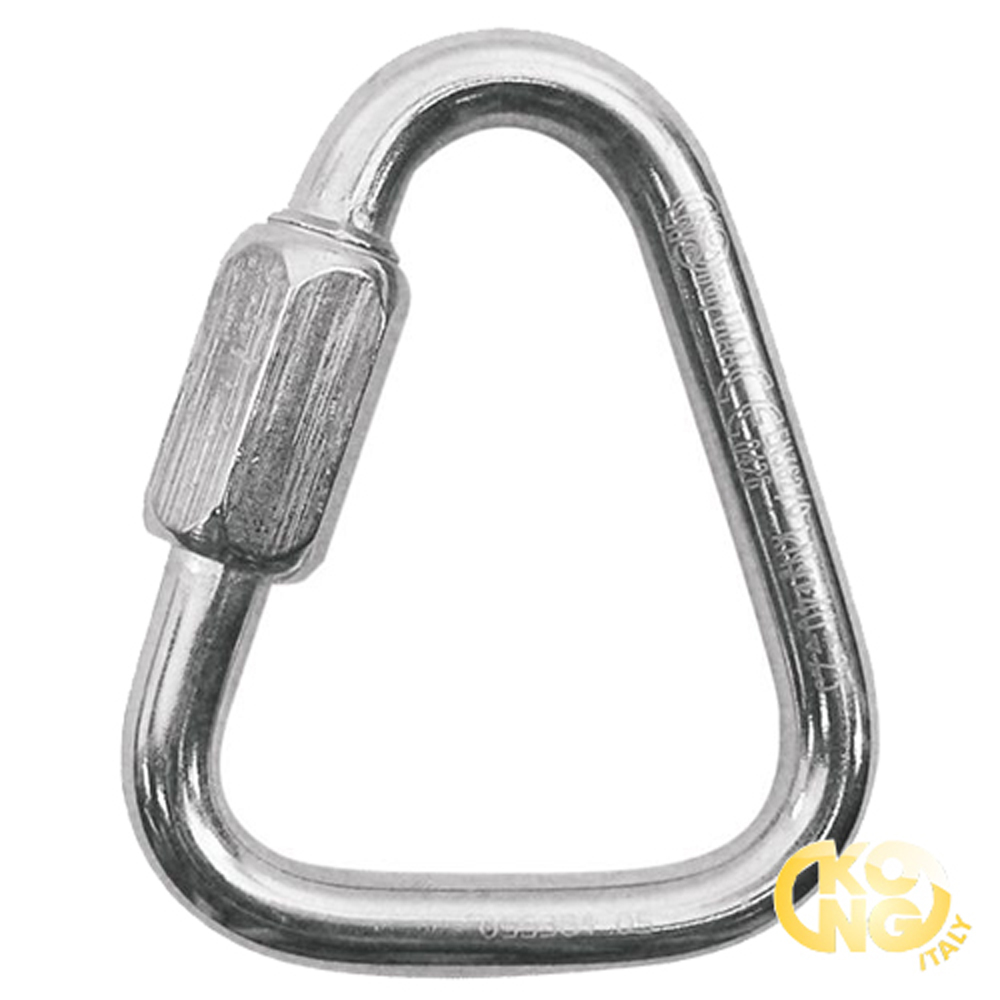

The Kong Triangle (Delta) Quick Links Carabiner features a triangular design constructed from high-quality stainless steel material. The body has a polished surface which makes the carabiner non-corrosive and suitable to be used in wet climatic conditions. The carabineer is ideal to be used for rescue operations and civil protection operations. The triangular design gives an option of distributing the weight in three different directions.
This Delta Link is available in three size options and can be used to connect to a chest ascender with a harness for smooth and safe climbing process. Designed to withstand rough handling, the link is also appropriate to use in tactical conditions. The main axis of the link has maximum weight bearing capacity of 60kN.
Recommended for:
Work Activities: Metal Structures, Treeclimbing/Arboriculture, Cableway Evacuation, Roof and Inclined Planes, Rope Access
Rescue Activities: Cableway Evacuation, Firebrigades and Civil Protection
Features:
- Triangular quick link is made up of stainless steel
- It is useful for having a distribution of forces in three directions
- It can be used to connect the chest ascender to the harness
Specifications:
Part No. | Color | Weight | Length | Width | Body Diameter | Rope Diameter | Axis Load |
502IC0P0PK (6021000D1KK) | Polished | 155g (5.46oz.) | 86mm (3.38in) | 66mm (2.59in) | 10mm (0.39in) | 12mm (0.47in) | 30 to 60 kN |
502EC0P0PK (6020800D1KK) | Polished | 89g (3.13oz.) | 72mm (2.83in) | 56mm (2.20in) | 8mm (0.31in) | 10mm (0.39in) | 25 to 40 kN |
502OC0P0PK (6021400D1KK) | Polished | 420g (14.81oz.) | 123mm (4.84in) | 85mm (3.35in) | 14mm (0.55in) | 17mm (0.67in) | N/A |
Certification Information for 502EC0P0PK and 502IC0P0PK:
- CE EN 12275/Q
- CE EN 362/Q
- UIAA
Click Here To Download: Instructions Of Use
Click Here To Download: General Safety Informations
