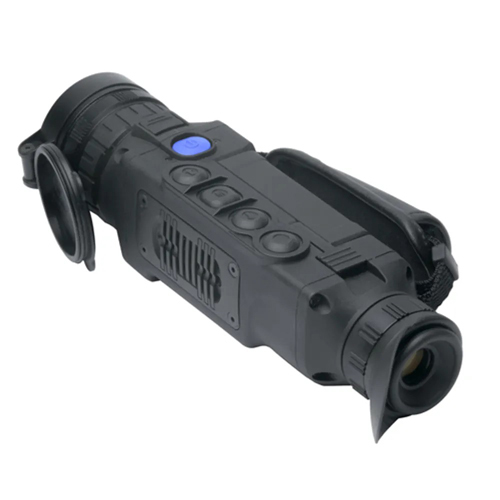

Pulsar Helion 2 XP50 2.5-20 Thermal Monocular
The Pulsar Helion 2 XP50 2.50-20 Thermal Monocular uses the IPX7 Fully Waterproof-Rated Technology that aids perfect functioning in wet weather, even during intense rain, submergence in 3 ft. of water for up to 30 minutes, and snowfall. It has a highly sensitive thermal imaging sensor featuring the advanced NETD 40mK sensor that produces precise detail recognition imaging even in the worst weather conditions. Despite the thermal contrast being very low, the small temperature difference is visible with its richly contrasted high-resolution imaging.
It can be powered up almost instantly which contributes to increasing its battery life and prolongs the overall operation time. Its proprietary Image Boost Technology comprises of software algorithms designed to increase imaging clarity and overall image detail, giving a sharper and more detailed field of view along with better object identification capabilities. The device uses a new HD display that delivers richly contrasted, and vividly colored field of view while the AMOLED technology provides flawless and high-resolution image quality.
Features: | Included: |
- Highly sensitive thermal imaging sensor <40 mK
- 640x480 resolution / 17um pixel pitch core
- 2000 yd detection range
- Full-color AMOLED Display
- Built-in photo and video recorder
- 4 observation modes
- Variable digital zoom
- Picture-in-picture
- 8 color pallets
- Wi-fi integration with IOS and Android devices
- Up to 10 hours operating time
- IPX7 Waterproof rating
- 16 GB memory
- Operates from -25C to 50C
- Rechargeable IPS7 Battery
|
- Battery pack
- Battery pack chargring kit
- USB cable
- Hand strap
- Lens Cleaning Cloth
- Carrying Case
|
Specification:
Frame Rate, Hz | 50 |
Microbolometer Resolution, pixels | 640 x 480 |
Pixel Pitch, µm | 17 |
NETD, mK | <40 |
Display Type | AMOLED |
Display Resolution, pix. | 640 x 480 |
Built-in Video Recorder Availability | Yes |
Built-In Memory, Gb | 16 |
Integrated Wi-Fi | Yes |
Stream Vision support | Yes |
Magnification | 2.5 - 20 |
Digital Zoom | 2/4/8 |
Lens diameter, mm | 42 |
Lens Focus, mm | 50 |
Relative aperture, D/f' | 1:1.2 |
Field of View, degrees | 12.4 |
Field of view, m@100m | 21.8 |
Field of view, ft@100yd | 65.4 |
Minimum focusing distance | 10' (3m) |
Eye relief | 0.6" (16mm) |
Exit Pupil, mm | 5 |
Diopter Adjustment | ± 5 |
Focusing Type of Distance | Objective |
Range of Detection | 2000 / 1800 |
Power Supply | 3 - 4.2 |
Battery Type | B-Pack (18650 Li-ion) |
Battery Life (w/o video out), hours | 10 |
External Power Supply | 5B - USB |
Lens Material | Germanium |
Body Material | Glass-nylon composite |
Tripod Mount | 1/4" |
Operating Temp,°F/°C | -13 to 122 / -25 to +50 |
Level of Protection (acc. to IEC 60529) | IP67 100% dustproof and submergible to 1m for 1 hour |
Calibration | Manual, automatic, semi-automatic |
Length | 9.2" (234mm) |
Width | 2.2" (55mm) |
Height | 2.3" (58mm) |
Weight | 17.6 oz |
Click Here to Download: User Manual
Click Here to Download: Quick Start Guide
