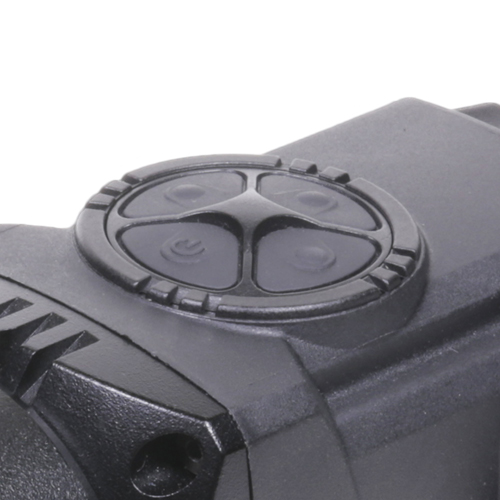

Pulsar Core RXQ30V 1.6 – 6.4 x 22 Thermal Riflescope
The Pulsar Core RXQ30V Thermal Riflescope features design that is a combination of a monocular and a riflescope. It effectively produces heat signals in a green sapphire tint. The device features a 384 x 288 core with a refresh rate of 50Hz. The core device delivers the thermal images to the 640 x 480 AMOLED display without any noise or interruption. Its defective pixel repair technology enhances the picture quality even more. The durable design allows the riflescope to function at extreme temperatures ranging from -13° to 122° F.
This Thermal Riflescopehas three operational modes including rocks, identification and forest. It also features IPX7 waterproof rating to ensure the best picture for the environment that the user is in. Its base magnification is 1.6x and offers digital zoom of 2x, 3x and 4x. The device has been powered by the highly efficient CR123A battery. Its glass-nylon composite Core is capable of detecting human-sized heat signatures for up to 900m and has the ability to memorize zeroing parameters. Other features include one-shot zeroing with freeze function, 10 variable electronic reticles, manual, semi-automatic and automatic calibration modes, wireless remote control, a conveniently designed carrying case and a torque screwdriver.
Features: | Included: |
- 384x288 resolution, 17Âμm pixel pitch core; 985 yard detection range
- Compact size
- 2x, 4x with stepped digital zoom
- Picture-in-picture digital zoom
- One-shot zeroing with freeze function
- Green sapphire display
- 3 rifle profiles with 3 zero saves
- External power supply adaptable
- 10 variable electronic reticles
- High resolution AMOLED display
- Rock, forest and identification viewing modes
- IRIS technology, increased recognition and detection software
- Manual, automatic and semi-automatic calibration modes
- Pixel repair feature
|
- Carrying case
- Torque screwdriver
- Wireless remote control
- Hand strap
- User manual
- Cleaning cloth
- Warranty card
- 2xCR123A
Batteries Required:
|
Specification:
Microbolometer Type | Uncooled Microbolometer |
Focusing Type of Distance | External |
Windage & Elevation, 1 click (h/v), mm@100m | 34/34 |
Power Supply | 4-6V |
Battery Type | 2xCR123A |
Battery life, hours | 4 |
External Power Supply | Yes with adapter |
Material, Lens | Germanium, glass |
Body Material | Glass-nylon composite |
Level of Protection (acc. to IEC 60529) | Waterproof |
Calibration | Manual, automatic, and semi-automatic |
Shockresistance, on Rifled Weapon, J | 6000J |
Remote Control | Yes |
Operating temperature, F/C | -13 to 122/-25 to 50 |
Length (in/mm) | 9.4/240 |
Width (in/mm) | 2.6/65 |
Height (in/mm) | 2.4/60 |
Weight (without batteries) oz | 17.6 |
Diopter Adjustment | +5 to -5 |
Diameter, Exit Pupil | 5mm |
Frame Rate | 50 |
Microbolometer Resolution, pixels | 384x288 |
Pixel Pitch, μm | 17 |
Display Type | AMOLED |
Display Resolution, pix. | 640x480 |
The Operation Modes | Rocks, forest, identification |
Defective Pixel Repair Option | Yes |
Magnification | 1,6 |
Digital Zoom | 2x, 3x, 4x |
Diameter, Lens, mm | 22 |
Lens Focus, mm | 30 |
Relative aperture, D/f | 1/1,6 |
Field of View, °, horizontal * vertical | 12,4 |
Field of View, m@100m, horizontal | 21,8 |
Distance, Minimum Focusing Distance | 5m |
Eye Relief, mm | 50mm |
Diameter, Exit Pupil | 5mm |
Spectral Sensitivity, μm | 7.5/13.5 |
