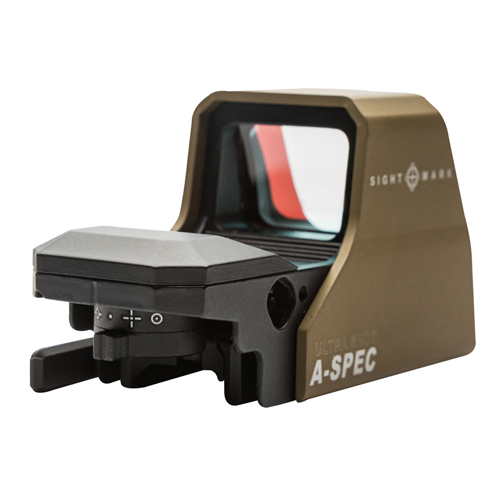

Sightmark Ultra Shot A-Spec Reflex Sight
The Sightmark Ultra Shot A-Spec Reflex Sight is designed for superior accuracy and ultra-fast target acquisition at the range. Ideal for recreational or professional shooting, it quickens target acquisition while maintaining a wide field of view thanks to its premium wide-angle lens. The windage and elevation adjustments allow up to 120 MOA of travel and the Interlok internal locking system keeps your settings in place for precise, repeatable shooting. It has 4 red reticle options—5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair and 3 MOA dot with 30 MOA circle/crosshair.
It features rugged, lightweight aluminum alloy housing with a protective shield. It is designed to mount to any Picatinny rail with an LQD (Locking Quick Detach) lever. It is powered by a single CR123A battery but still has extremely long battery life. In addition to the R-Spec reflex sight, this model provides 6-night vision settings to allow using the sight with night vision devices. This cutting-edge reflex sight is also compatible with XT-3 Magnifier.
Features: | Included: |
---|---|
|
|
Sku | 26032 | 26032DE |
---|---|---|
Reticle, Type | 4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA) | |
Reticle, Color | Red | Red |
Setting, Brightness | Off, 1-10 | Off, 1-10 |
Magnification | 1 | 1 |
Objective Lens | 33 x 24 mm | 33 x 24 mm |
Elevation Range of Adjustment | 120 MOA | 120 MOA |
Eye Relief | Unlimited in/mm | Unlimited in/mm |
Windage Range of Adjustment | 120 MOA | 120 MOA |
Adjustment Value | 1 MOA | 1 MOA One click |
Parallax Setting | 10 / 9.1 yd/m | 10 / 9.1 yd/m |
Finish/Color | Matte black | Dark Earth |
Body Material | Aluminum 6061-T6 | Aluminum 6061-T6 |
Maximum Recoil | .50 BMG Max caliber | .50 BMG |
IP Rating (waterproof) | IP55 - water resistant | IP55 water resistant |
Nitrogen Filled | No | No |
Fog Proof | No | No |
Shockproof | Yes, 8' (2.4m) | Yes, 8' (2.4m) |
Lens Coating | AR red | AR Red |
Battery Type | CR123A | CR123A |
Mount Type | Picatinny | Picatinny |
Battery Life | 200 - 2,000 Hours | 200 - 2,000 Hours |
Battery Voltag | 3V | 3V |
Operating temperature | -22 to 160 / -30 to 71 F/C | -22 to 160 / -30 to 71 F/C |
Length | 4.33" (110mm) | 4.33" (110mm) |
Width | 1.96" (50mm) | 1.96" (50mm) |
Height | 2.28" (58mm) | 2.28" (58mm) |
Weight | 10.8 oz | 10.8 oz |
Available Options:
Click Here to Download: Specification Sheet
Click Here to Download: Dark Earth Specification Sheet
Click Here to Download: User Manual
