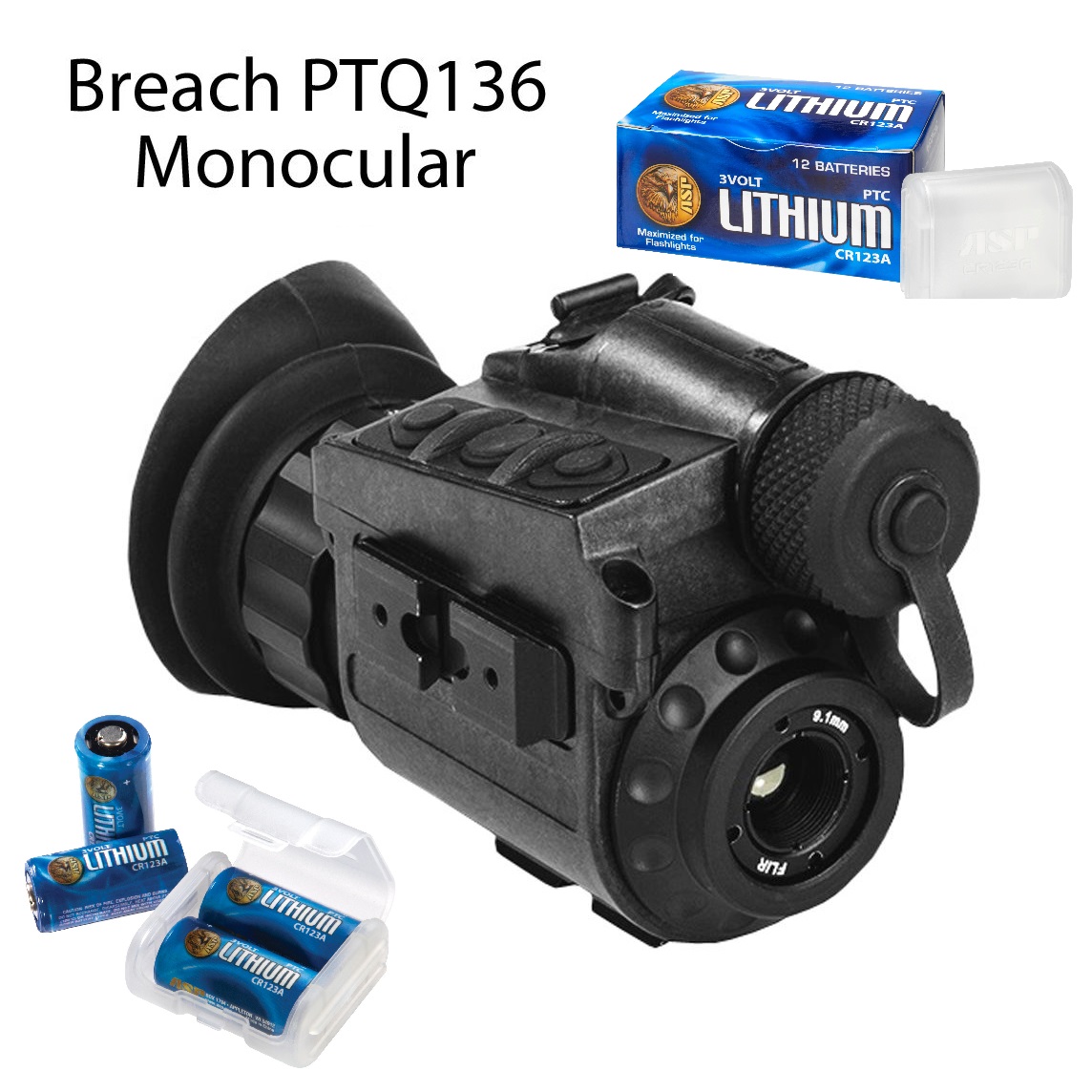

Flir Breach PTQ136 Monocular
The Flir Breach PTQ136 Monocular provides an intense magnification of the images of a suspect's heat in low lighting conditions and even in total darkness. To allow a hands-free usage, Flir Breach is equipped with multiple mounting points. This makes the monocular compatible with head mounts, helmet mounts, and also allows installation of additional devices.

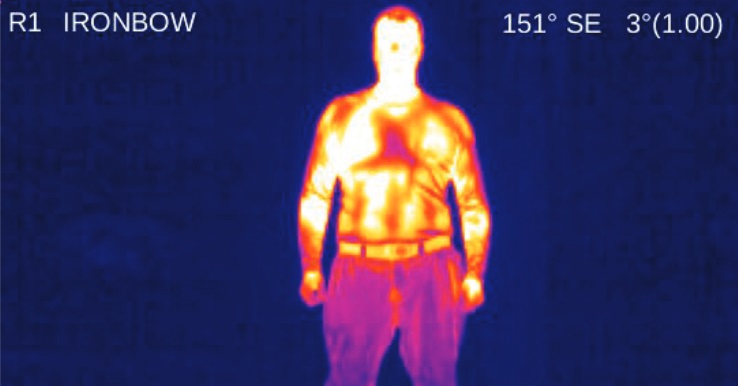

It features new Flir Boson core for an exceptional tactical awareness and an interruption-free detection. Moreover, the multifunctional thermal imaging monocular also allows onboard recording along with 7 different palletes for a quick evidence detection (both day and night). For a better detection of the suspect, the monocular also comes with a digital compass/inclinometer. The 7.4 ounces monocular provides a ligtweight and compact equipment for law enforcement professionals.
Features: | Included: |
---|---|
|
|
Detector Type | 320 × 256 VOx Microbolometer |
Display | Quad-VGA (1280 × 960) FLCOS |
Internal Memory | Up to 1,000 images and 2.5 hours of video on internal memory |
Size | 139 × 70 × 49 mm (5.5 × 2.7 × 1.9 in) |
Warranty | 2 years standard, 3 years with product registration |
Weight | 210 g (0.46 lbs) |
Eye Relief | 16 mm |
Lens System | 9.1 mm; F/1.04 |
Optical Magnification | 1x |
Video Output | Digital Video |
Operating Temperature Range | -20°C to +50°C (-4°F to +122°F) |
Storage Temperature Range | -40°C to +60°C (-40°F to +140°F) |
Digital Zoom | 1× - 4× continuous |
Color | Black |
Diopter Adjustment Range | -5 to +5 dpt |
Field of View [H x V] | 24° × 19° |
Image Processing | Flir Proprietary Digital Detail Enhancement™ |
Refresh Rate | 60 Hz |
Start up | < 1.5 seconds |
Battery Life (Operating) | Up to 90 minutes at 20°C |
Battery Type | One CR-123A 3V Lithium battery |
Configures Operational Settings:
| Click Here to Download: Data Sheet Click Here to Download: Start Guide Click Here to Download: Brochure Click Here to Download: Tech Note Click Here to Download: User Manual |
