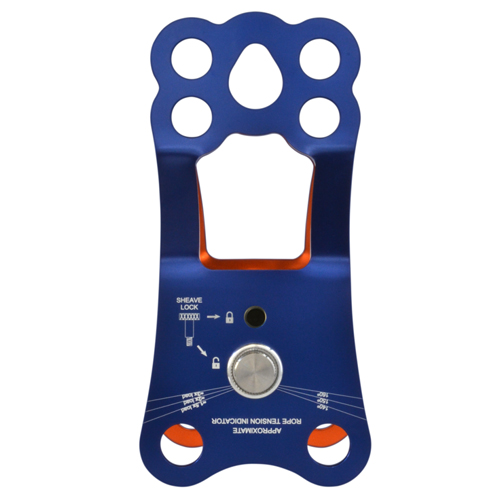

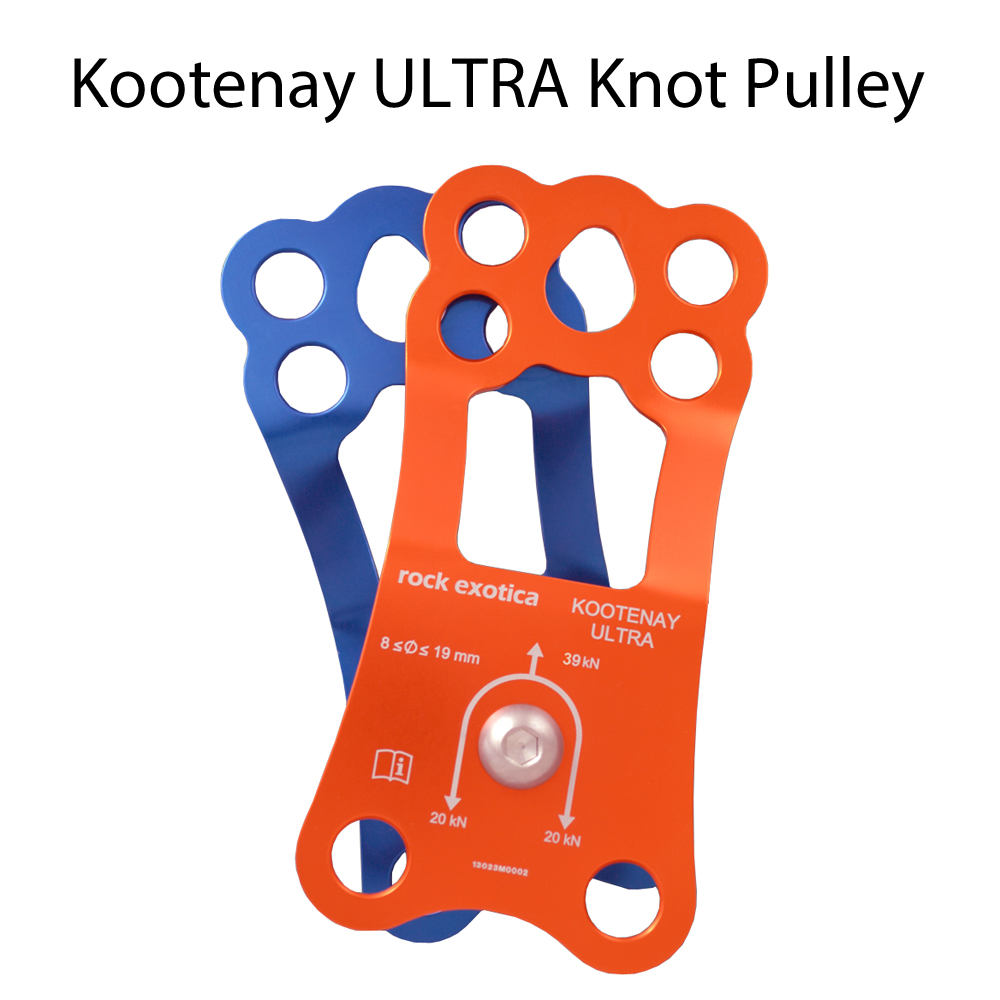

Rock Exotica Kootenay ULTRA Knot Passing Pulley

Rock Exotica Kootenay ULTRA Knot Passing Pulley

The Rock Exotica Kootenay ULTRA Knot Passing Pulley is a compact and lightweight pulley that maintains the same capacity of the larger Kootenay-style pulleys. Ideal for complex reeving highline, this advanced pulley features two holes for tag lines, a dual bearing and other features. The large cutouts enable easy rigging for high-strength tie-off with a single locking screw, stowable within the axle. Designed for increased stability and effectiveness, this knot-passing pulley makes use of two independent sealed ball bearings.

It features two additional holes that separate tag lines and hoist lines and helps prevent spinning of the load and/or any interference with connectors. Manufactured by Rock Exotica, the original Kootenay knot passing pulley was first proposed by the legendary Arnor Larson in the late '80s.

Features:

• Extremely compact and lightweight, while maintaining same capacity of larger Kootenay-style pulleys.

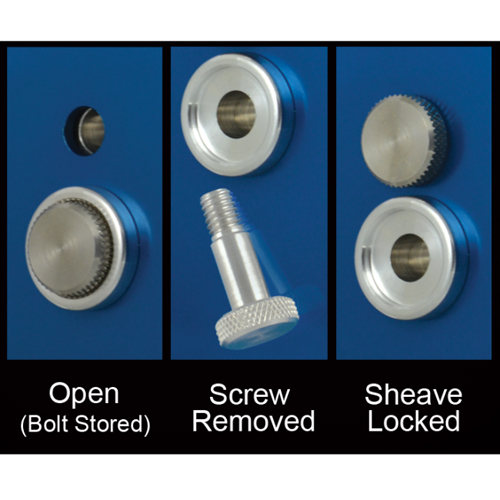

• Simplifies high-strength tie-off with a single locking screw, stowable within the axle.
• Uses two independent sealed ball bearings for increased durability and efficiency.
• Two additional holes to separate tag lines and hoist lines, helping prevent spinning of the load and interference with connectors.

Specifications:

• MBS: 36 kN
• WLL: 6 kN
• Sheave Dia: 2.2"
• Rope Dia: 8mm - 19mm
• Weight: 25 oz. (711 gm)
• Type: Double Bearing
• Certification: CE
