Steiner P4Xi 1-4X24mm P3TR Tactical Riflescope
The Steiner P4Xi 1-4X24mm P3TR Tactical Riflescope is a high-performance, compact tactical optic designed for quick target acquisition targeted towards the tactical user. Ideal for patrol rifles and AR platforms, this riflescope features a proven and versatile 4x zoom system with True 1x imaging for aiming with both eyes open. The high-contrast optics deliver vivid and bright images even in low light. It allows the user to quickly dial up the magnification for accuracy out to 400 yards.
The Tactical Riflescope in matte black features fully mil-spec waterproof submersible and nitrogen purged fog-proof housing. The low profile turrets/illumination controls ensure no hang up or snag during movement. The Steiner riflescope has a P3TR illuminated reticle that is quick pointing and is key for both low light and daylight use. The 11-level brightness control offers optimized settings for sighting in daylight, low light and with night vision.
Features:
- One Piece 30mm Tube
- 4x Zoom
- Consistent Eye Relief
- Low Profile Turrets / Illumination Controls
- Illuminated Reticle
- Waterproof/Fogproof / Shockproof
Specifications:
Item Number | 5202 |
Magnification | 1-4x |
Objective Lens | 0.95" (24mm) |
Tube Diameter | 1.18" (30mm) |

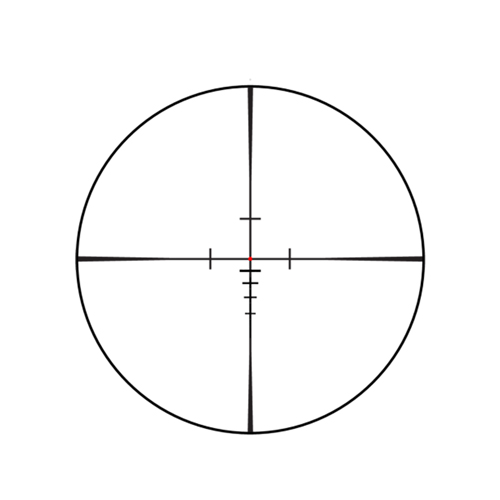

Reticle | P3TR |
Focal Plane | 2nd |
Field of View at 100 meters | 110 - 27.5 |
Eye Relief | 3.5" to 4.0" (89 to 102mm) |
Exit Pupil | 0.47" to 0.24" (12.0 - 6.0mm) |
Length | 10.3" (262mm) |
Weight | 17.3 oz. |
Diopter Adjustment Range | -3 |
Illumination Control | 11 Settings |
Wind/Elevation Click Value | .5 MOA |
Elevation Range at 100 m | 100 MOA |
Wind Range at 100 m | 100 MOA |
Parallax/Focus | Fixed |
Parallax/Focus Range | 100 yd |
Nitrogen Filled | Yes |
Operating Temperature Range | -13 °F to +145 °F |
Lens Cap | Not included |
Waterproof/Fogproof | Submersible to 33' |
Battery | CR2032 |
Warranty | Heritage Warranty |
---|
Click Here To Download: User Guide
